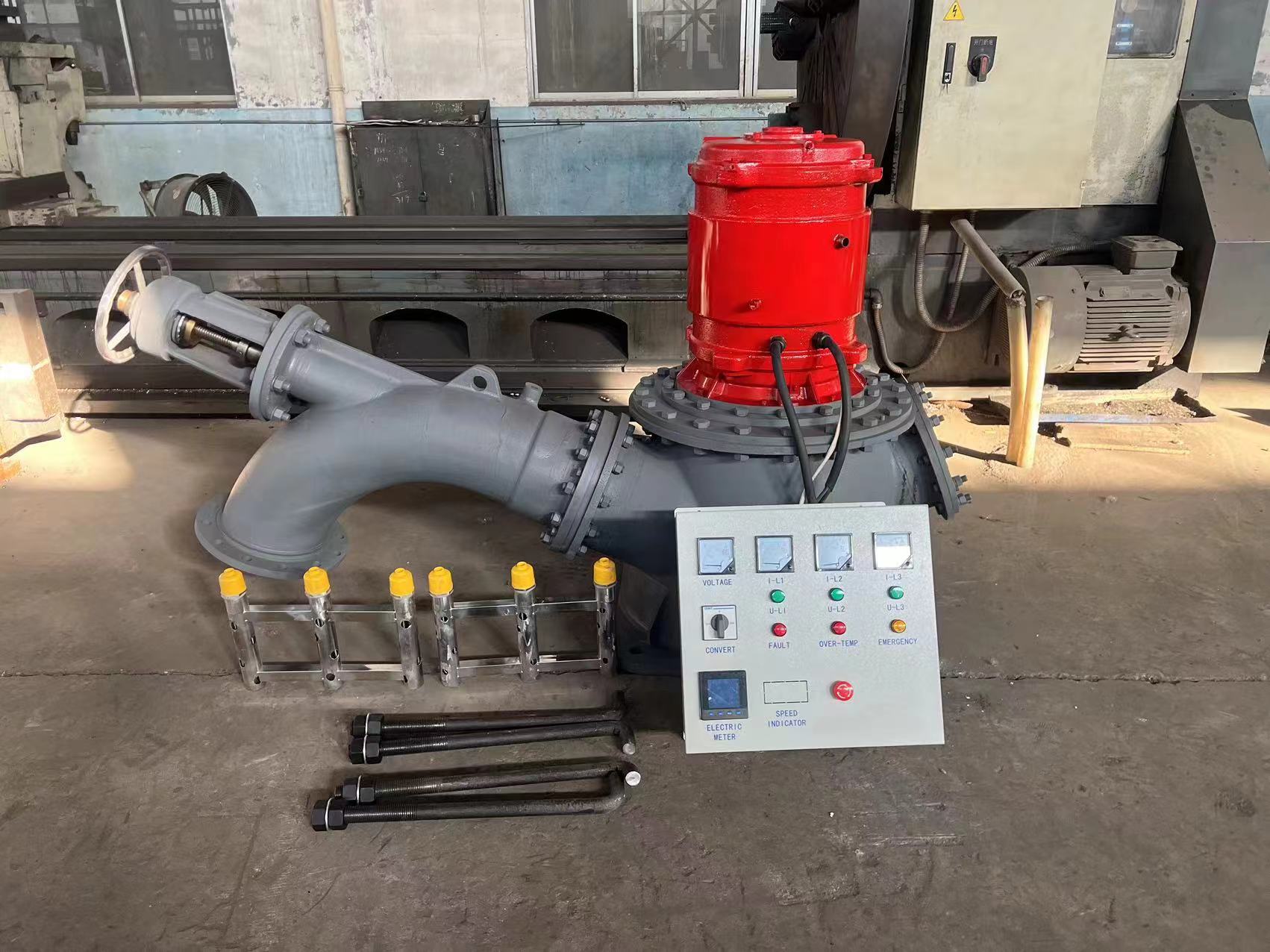

Micro Turgo Turbine 3kW - 50 kW

Turgo turbine is one of the best option for developing high head small flow rate hydraulic power resources. It has features of low invest, high efficiency, compact structure and easy to install.

Micro Turgo turbine designed and produced by FORWARD cover single nozzle and dual nozzle type, they are suitable for water head 12-100m, capacity 3KW-50KW.

Get a Quote Send E-mail

Characteristics

Description

Water to wire

Characteristics:

1. Head range 20 ... 120 m

2. Output ranging from 3-50 kW

3. Single or double jet design

4. High efficiency permanent magnet generator with water cooling system

5. Both on-grid & off-grid available

6. Cost effective, easy to install, low maintenance

7. Spear valve controlled electrically or hydraulically

8. Runner made of extremely wear-resistant stainless steel – not indestructible, but close to it!

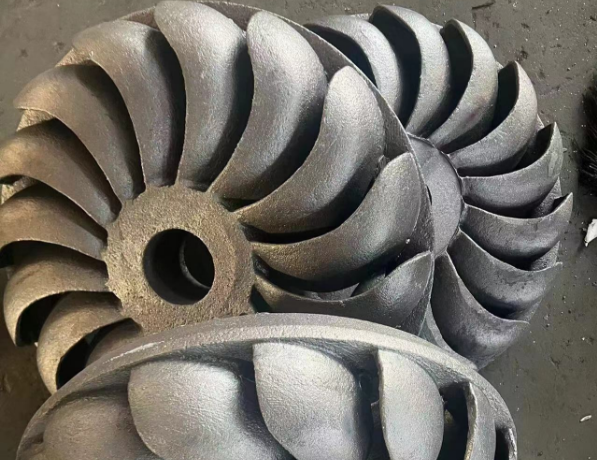

Runner

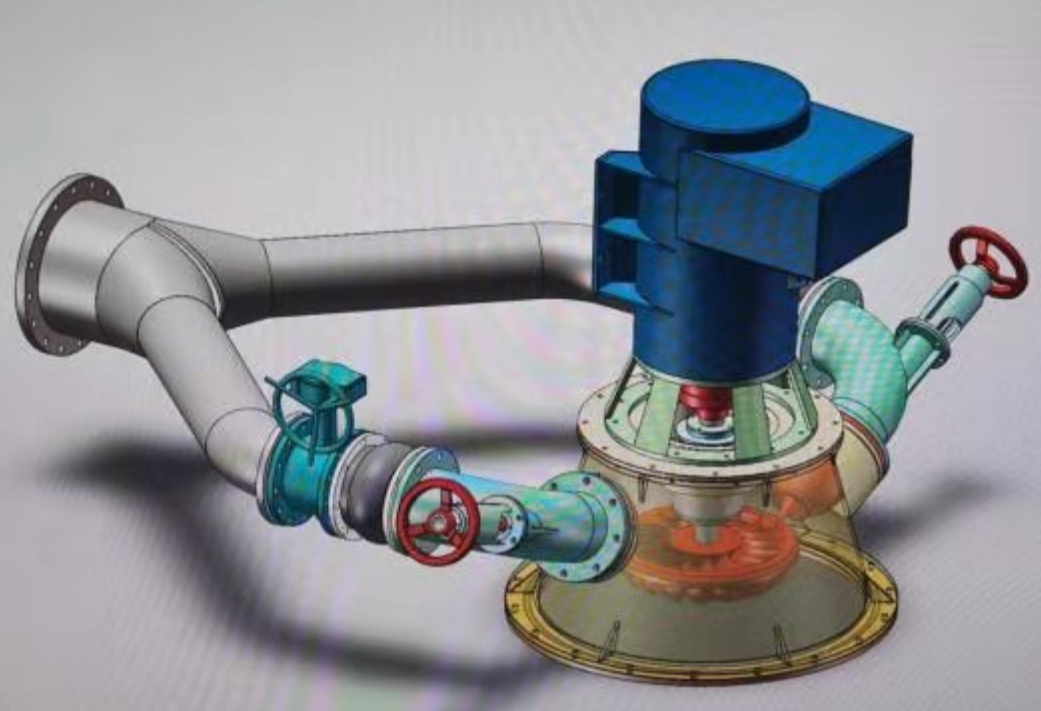

Designed with 3D model and optimized by CFD and FEA calculations. Welded construction,

runner blades made of INOX ocr13Ni5Mo, fully CNC machined. Not witnessed tests

including dynamic balance and non-destructive inspection.

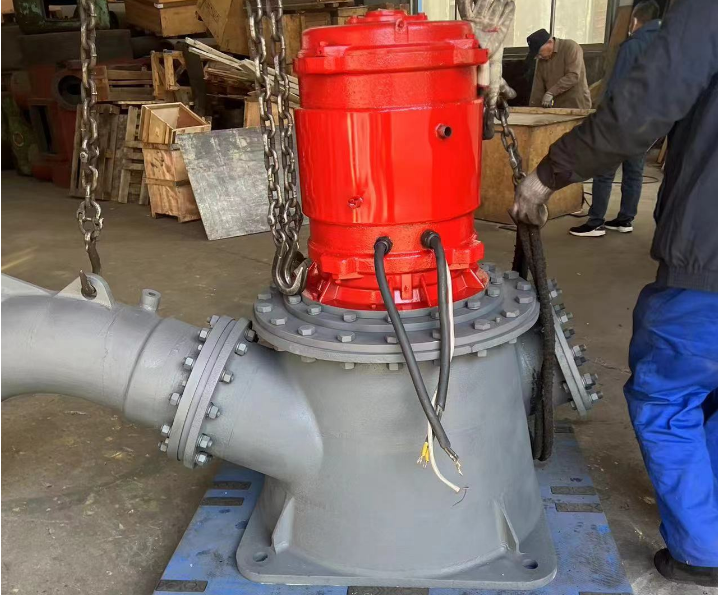

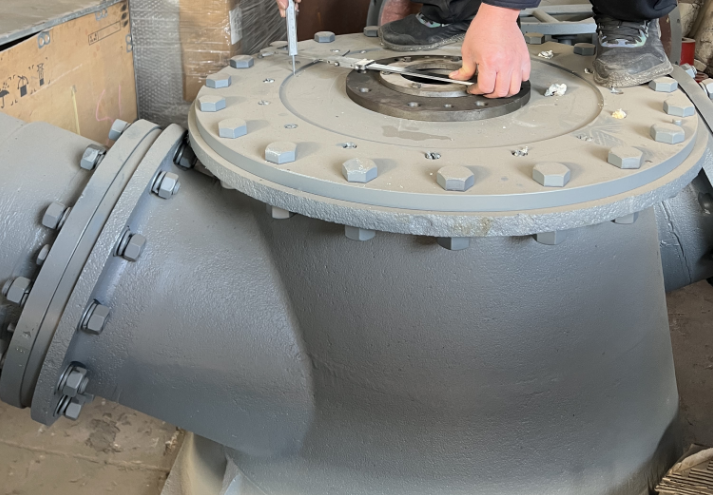

Turbine Casing

The turbine casing including upper cover part and lower frame casing, they are mounted together

by bolts. With this strucutre, the turbine casing is easy to dismantal during maintenance.

They both are made of casted carbon steel C45E, the surface is polished and painted.

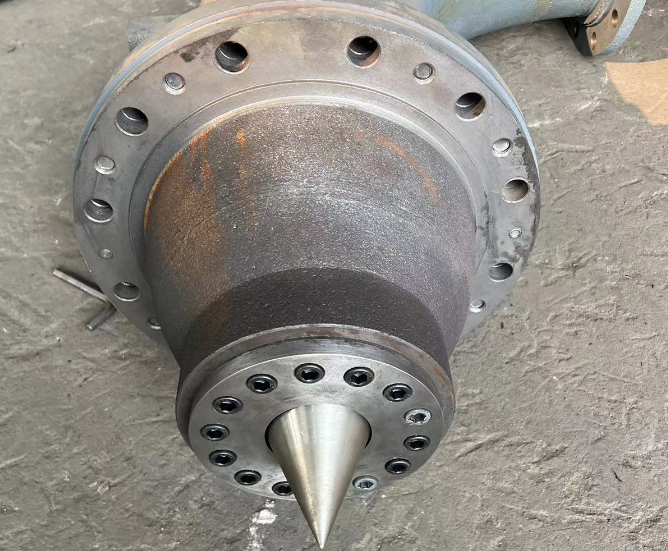

Nozzle Jet

The water injection mechanism consists of spear valve, nozzle jet, needle jet, it is water flow

regulate mechanism, the whole mechanism is moved by servomotor.

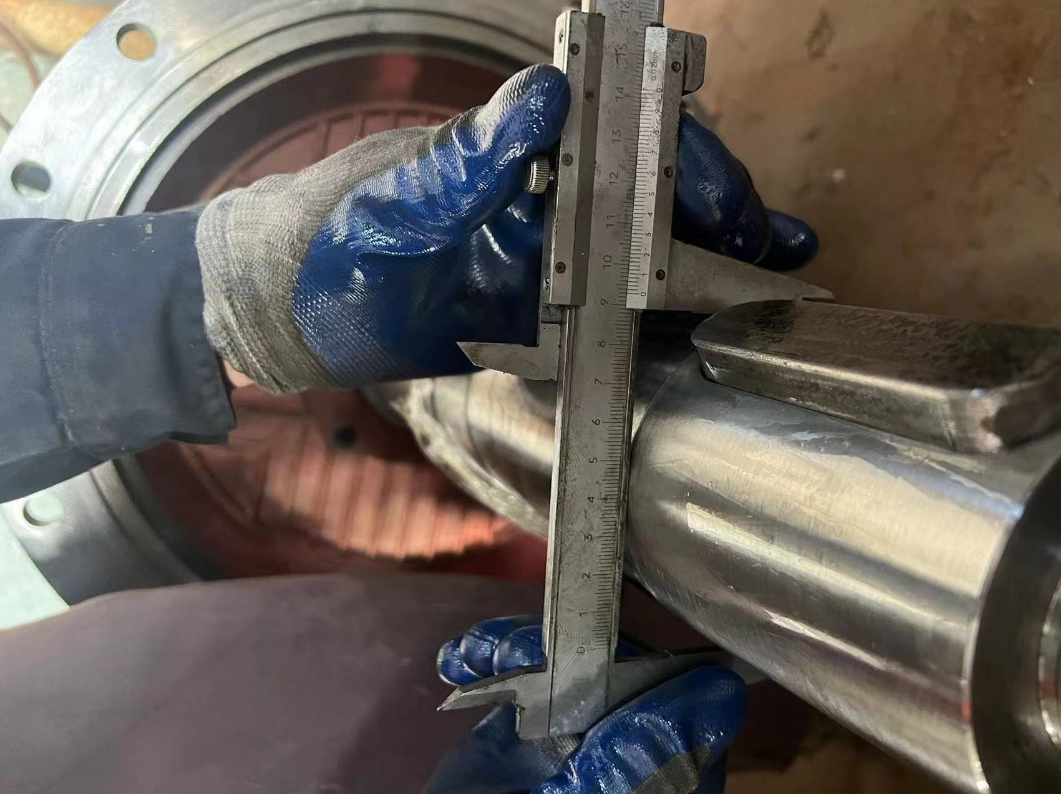

Main shaft

The main shaft is made of stainless steel, machined and polished. The turbine

runner is placed on generator shaft directly.

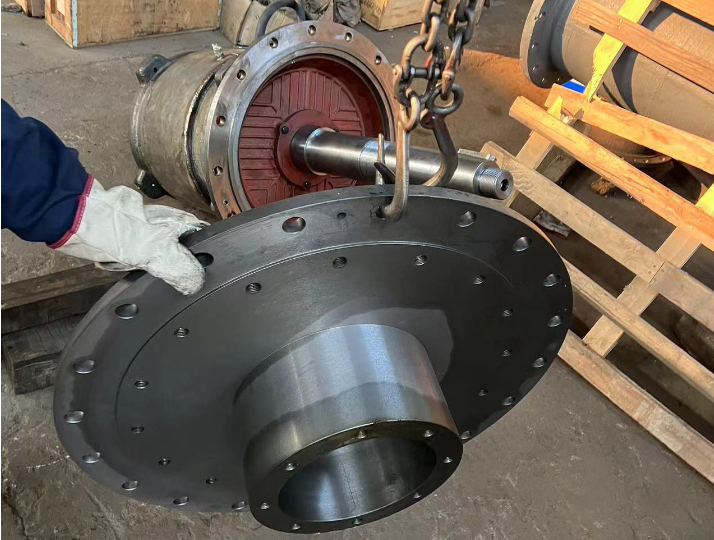

Generator

High efficiency Permanent Magnet Generator, casing made of stainless steel, with water

cooling system and dump load controller, power factor 0.95,

insulation class F/F, follow IEC standard.

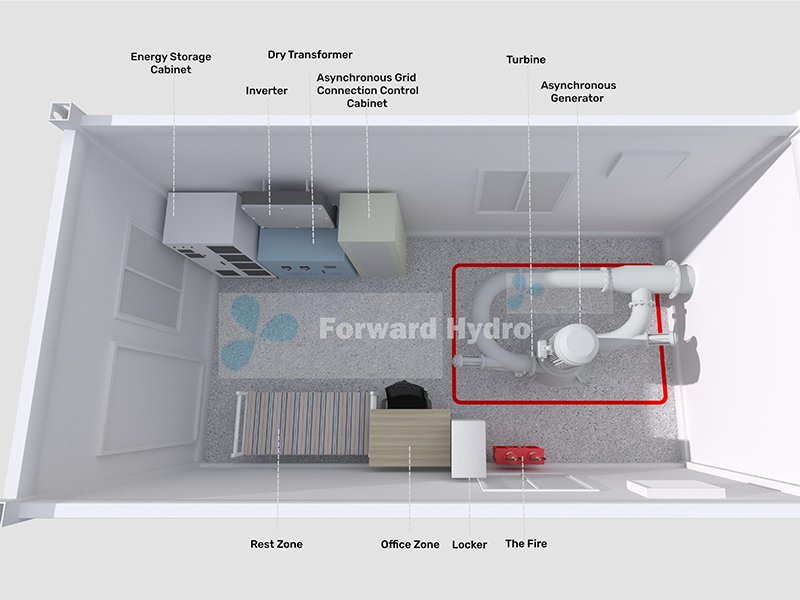

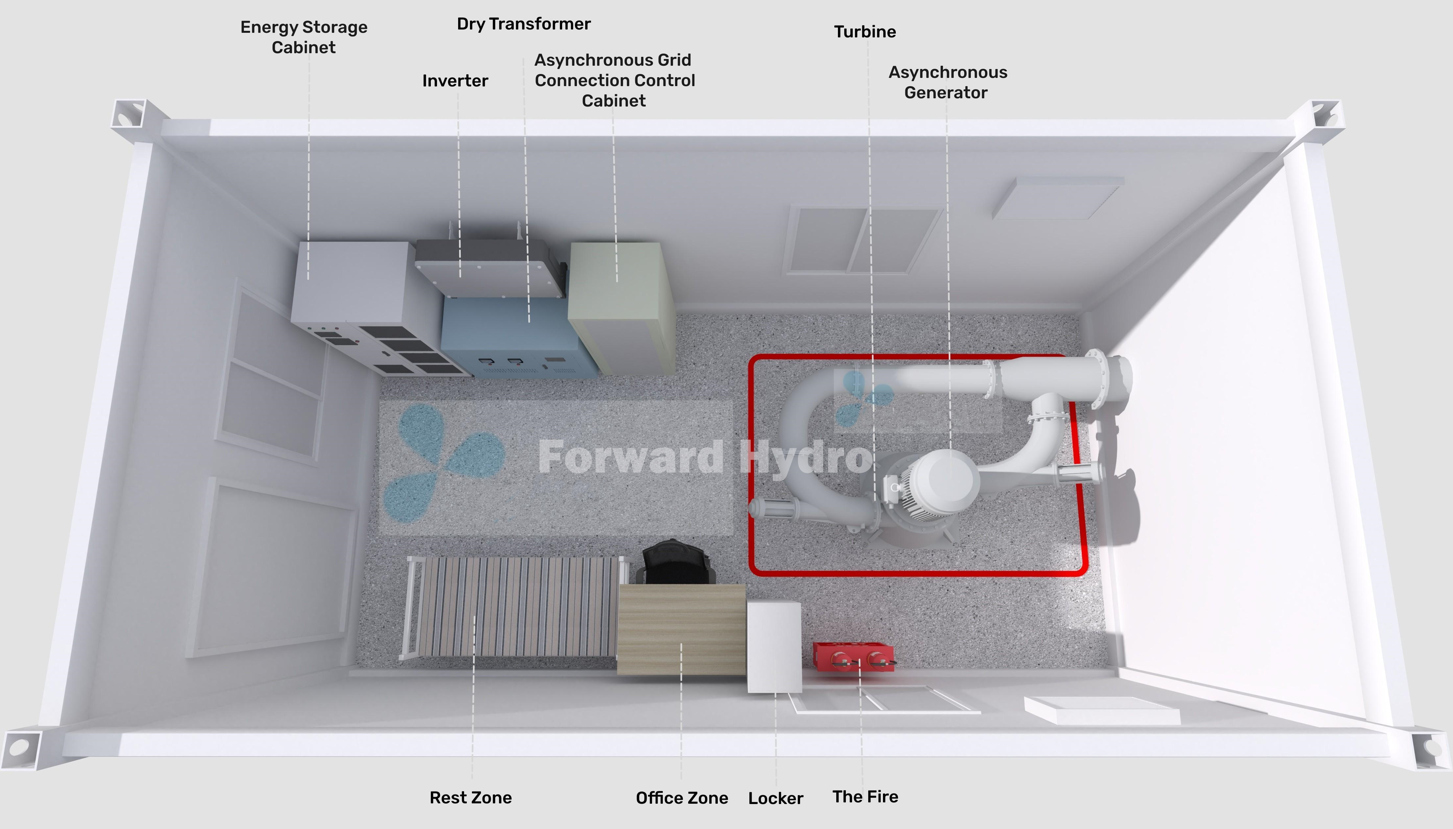

Water-towire package

You only provide the powerhouse; we take care of the entire inner workings. Forward Hydro designs,

plans, manufactures and produces under one roof everything you need to transform the power of

water at the location of your choice into clean electricity; for your usage or for feeding it into

the power grid. Investing in a sustainable future could hardly be easier.
